Matter over Ethernet (PoE) Shades – Power & Control on One Cable
Freedom from ugly power plugs or annoying battery replacement.
Matter over Ethernet (PoE) Shades
Power and control over a single Ethernet cable. No outlets near windows, no batteries to swap—just fast, reliable, local control.
How it works

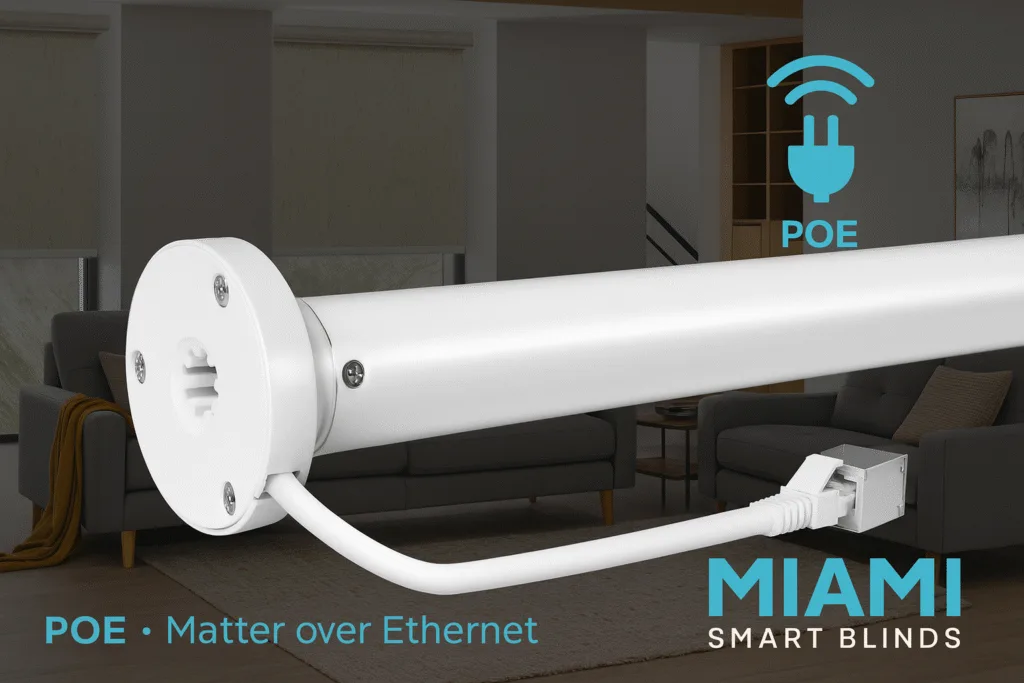

Power over Ethernet (PoE) sends low-voltage power and IP control through the same CAT cable. Your PoE switch (endspan) supplies power; the motor receives both power and commands via Ethernet. With Matter, the shades join your smart home using a compatible hub for quick, local automations.
- Always on: steady torque for large/heavy shades.
- Local control: Matter enables fast, platform-agnostic operation.
- One cable: power + data together keeps installs clean.
Why PoE shades
- One-cable install – Run CAT5e/CAT6 from a PoE switch; no outlet per window.
- Matter-ready – Add to Apple Home / Google Home / Alexa via a Matter hub.
- Cord-free & safe – Clean look and child-safe by design.
- Reliable power – No charging cycles; ideal for large spans and high-use rooms.
- Quiet operation – Low noise in the ~42–46 dB range (model-dependent).
- Pro-friendly – Centralised power, tidy racks, and simple service.

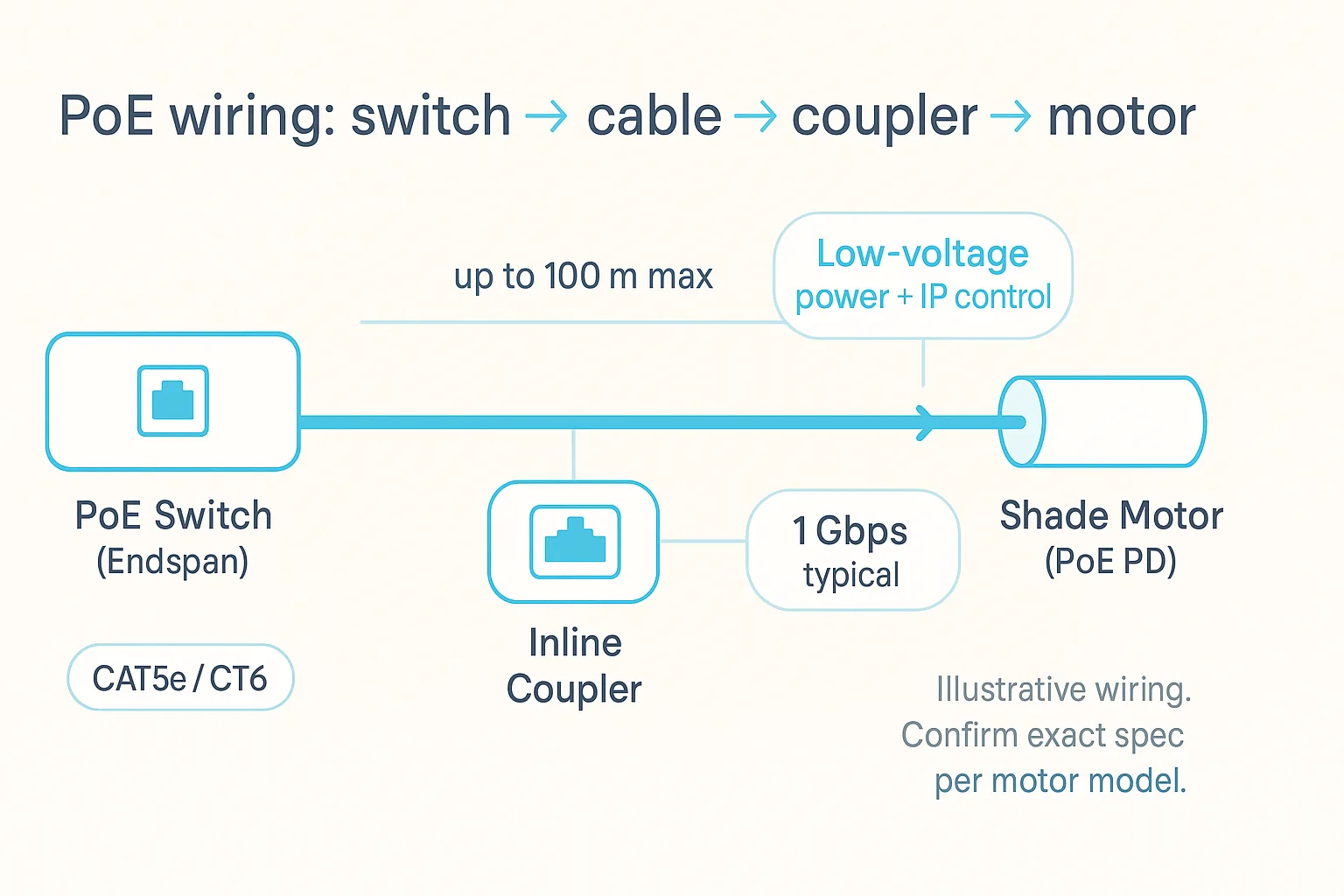

PoE wiring
Topology: PoE switch (PSE) → in-wall CAT → inline coupler → motor (PD).
- Cable: CAT5e/CAT6 (Cat6A/Cat7 supported). Up to 100 m per run.
- Power budget: ≥ 5 W per shade for standard applications.
- Standby: ~120–150 µA. Data rates up to 1 Gbps; IEEE 802.3bz supports 2.5–5 Gbps.
Exact specs vary by motor model—confirm during quoting.
Smart home options
Option A — Direct via Matter
- Pair through a compatible Matter hub (Apple Home / Google Home / Alexa) for fast, local automations.
Option B — Via bridge
- Use a vendor bridge to integrate with advanced platforms (e.g., SmartThings, Control4, Crestron, RTI, ELAN).
Frequently Asked Questions
Quick answers to common questions. Expand any topic to learn more
How do I order PoE shades?
Choose your shade style and select the PoE motor option during configuration.
Which shade styles are supported?
Roller, zebra/dual, woven wood, outdoor, and roman (model-dependent).
What is the typical noise level?
Approx. 42–46 dB depending on motor model
Max cable distance and power?
Up to 100 m from the PoE switch to the motor; ≥ 5 W port per shade is generally sufficient
Can I use third-party wall switches or an open API?
Generally no – use the ecosystem app/remote or a vendor bridge for broader control.
Evidence for specs
Typical noise range, ≥5 W PoE port, Cat5e/Cat6 cabling, 100 m run, standby ~120–150 µA, 1 Gbps (and 2.5–5 Gbps per 802.3bz).
Let’s Design Your PoE Blinds and Shades
Send window counts, approx. sizes, and where your network rack/switch will live. We’ll recommend a switch budget and cable plan.
Schedule your free in-home consultation by calling +1 754 274 93 53 or emailing [email protected]. You can also tap the button below. Ask about flexible financing options to make your project even easier.
